Product Summary
The FF1400R17IP4 is a PrimePACK module and NTC. The applications of the FF1400R17IP4 include 3-level-applications, auxiliary inverters, high power converters, motor drives, wind turbines.
Parametrics
FF1400R17IP4 absolute maximum ratings: (1)collector-emitter voltage VCES: 1700 V; (2)DC-collector current, ICnom.: 1400 A; (3)repetitive peak collector current ICRM: 2800 A; (4)total power dissipation Ptot: 955W; (5) gate-emitter peak voltage VGES: ±20 V.
Features
FF1400R17IP4 features: (1)Extended operation temperature Tvjop; (2)High DC stability; (3)High current density; (4)Low switching losses; (5)Low VCEsat; (6)Tvjop=150℃.

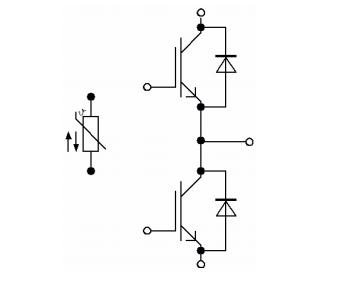

Diagrams
