Product Summary

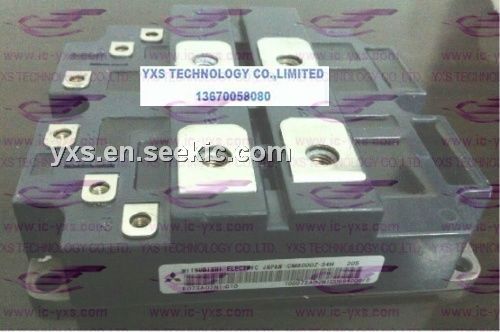

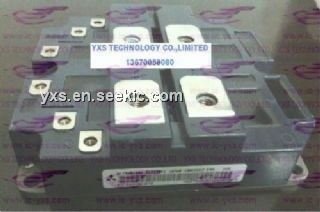

The CM800DZ-34H is an IGBT module. It is designed for use in switching applications. The applications of the CM800DZ-34H are Traction drives, High reliability converters, DC choppers.
Parametrics
CM800DZ-34H absolute maximum ratings: (1)Junction Temperature: –40 to +150℃; (2)Storage Temperature: –40 to +125℃; (3)Collector-Emitter Voltage (G-E SHORT): 1700 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current: 800 Amperes; (6)Peak Collector Current: 1600 Amperes; (7)Emitter Current: 800 Amperes; (8)Peak Emitter Current: 1600 Amperes; (9)Maximum Collector Dissipation: 6200 Watts; (10)Isolation Voltage (Main terminal to Baseplate, AC 1 min.): 4000 Vrms.
Features
CM800DZ-34H features: (1)IC: 800A; (2)VCES: 1700V; (3)Insulated Type; (4)2-element in a Pack; (5)AISiC Baseplate.
Diagrams
