CM75TF-24H

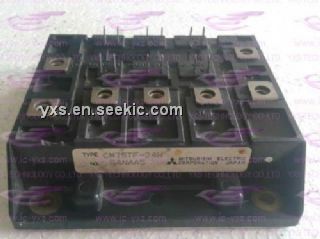

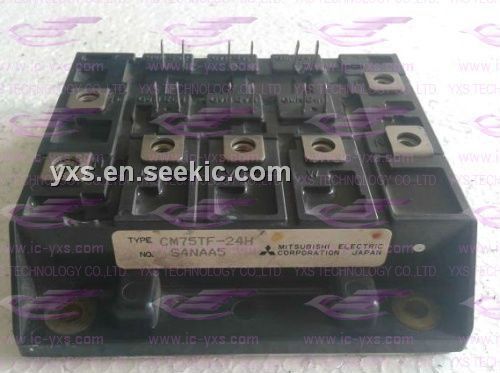

CM75TF-24H, high power switching use insulated type module, 1200V, 75A, 600W, MITSUBISHI

Rated 5 Rating 5 | reviews | Write a review

Price:: US $103.00~110.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 25 :	110.00 / Piece
27 ~ 35 :	105.00 / Piece
37 ~ 46 :	103.00 / Piece

PartNumber:: CM75TF-24H

Brand:: MITSUBISHI - MITSUBISHI | D/C: 97+

Availability:: Supply Ability: 300/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-26

From Other Seller

Part Number:CM75TF-24H
US $103.00 - 110.00
Quantity:

piece

Product Summary

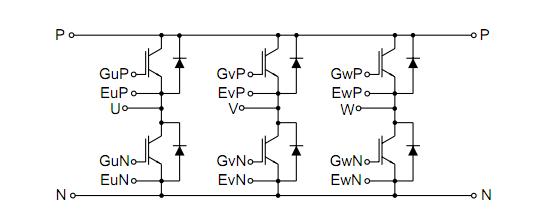

The CM75TF-24H is a Mitsubishi IGBT Module designed for use in switching applications. It consists of one IGBT having a reverse-connected super-fast recovery free-wheel diode and an anode-collector connected super-fast recovery freewheel diode. All components and interconnects of the CM75TF-24H are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

CM75TF-24H absolute maximum ratings: (1)Junction Temperature: -40 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT): 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current (Tc = 25℃): 75 Amperes; (6)Peak Collector Current: 150 Amperes; (7)Emitter Current (Tc = 25℃): 75 Amperes; (8)Peak Emitter Current: 150 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃, Tj ≤ 150℃): 600 Watts; (10)Mounting Torque, M5 Main Terminal: 2.5~3.5 N·m; (11)Mounting Torque, M6 Mounting: 3.5~4.5 N·m; (12)Weight: 830 Grams.

Features

CM75TF-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
