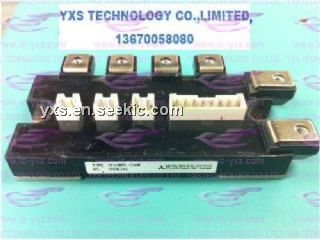

The CM100TL-24NF is an IGBT module. The applications of the CM100TL-24NF include AC drive inverters & Servo controls, etc.
Parametrics
CM100TL-24NF absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1200V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, TC= 25℃, IC: 100A; (4)Collector current, pulse, ICM: 200A; (5)Emitter current, TC= 25℃, IE: 100A; (6)Emitter current, pulse, IEM: 200A; (7)Maximum collector dissipation, TC= 25℃, PC: 620W; (8)Junction temperature, TJ: -40 to +150℃; (9)Storage temperature, Tstg: -40 to +125℃; (10)Isolation voltage, Viso: 2500Vrms.
Features
CM100TL-24NF features: (1)IC: 100A; (2)VCES: 1200V; (3)Insulated Type; (4)6-elements in a pack.

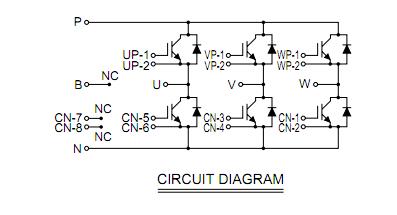

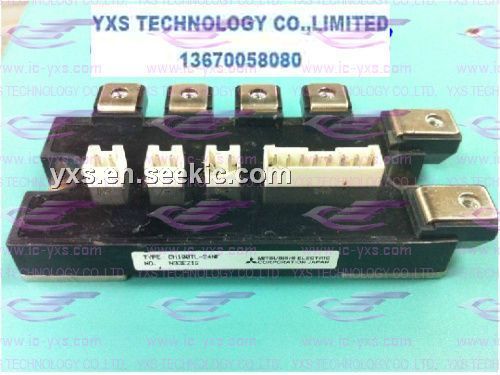

Diagrams
