Product Summary

The 6MBI8F-120 is an IGBT module. It is suitable for inverter for motor drive, ACDC servo drive amplifer, uninterruptible power supply and industrial machines, such as welding machines.

Parametrics

6MBI8F-120 absolute maximum ratings: (1)VCES: 1200V; (2)VGES: ±20V; (3)IC: 8A; (4)IC pulse: 16A; (5)-IC: 8A; (6)-IC pulse: 16A; (7)PC: 60W; (8)Tj: 150℃; (9)Tstg: -40 to 125℃.

Features

6MBI8F-120 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

Diagrams

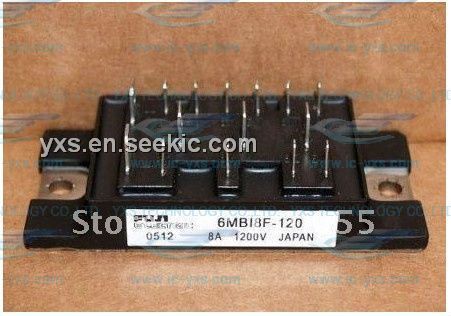

6MBI8F-120 block diagram
