Product Summary

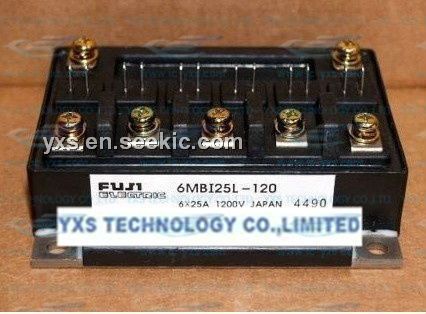

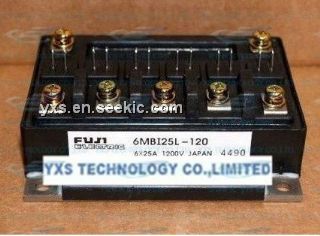

The 6MBI25L-120 is an IGBT module. The applications of the device are inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.

Parametrics

6MBI25L-120 absolute maximum ratings: (1)collecter-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)collecter current: continuos, IC: 25A; 1ms, ICpulse: 50A; continuous, -IC: 25A; 1ms, -ICpulse: 50A; (4)max power dissipation, PC: 250W; (5)operating temperature, Tj=150℃; (6)storage temperature, Tstg: -40 to 125℃; (7)net,weight: 510g; (8)isolation voltage, AC.1min: Visol: 2500V; (9)screw torque: 35 kg.m.

Features

6MBI25L-120 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.

Diagrams

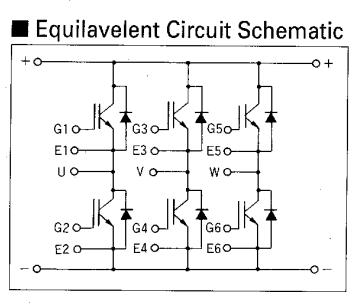

6MBI25L-120 block diagram
