Product Summary
The 2MBI400TC-060 is an IGBT module.
Parametrics
2MBI400TC-060 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 600 V; (2)Gate-Emitter voltage VGES: ±20 V; (3)Collector current Ic pulse 1ms: 800 A; (4)Collector Power Dissipation Pc: 1270 W; (5)Junction temperature Tj: 150 ℃; (6)Storage temperature Tstg: -40~ +125 ℃; (7)Isolation voltage, Viso: 2500 V.
Features
2MBI400TC-060 features: (1)Zero gate voltage Collector current ICES: 2.0 mA; (2)Gate-Emitter leakage current IGES: 400 nA; (3)Gate-Emitter threshold voltage: 6.2 6.7 7.7 V; (4)Collector-Emitter VCE(sat): 1.9 V.

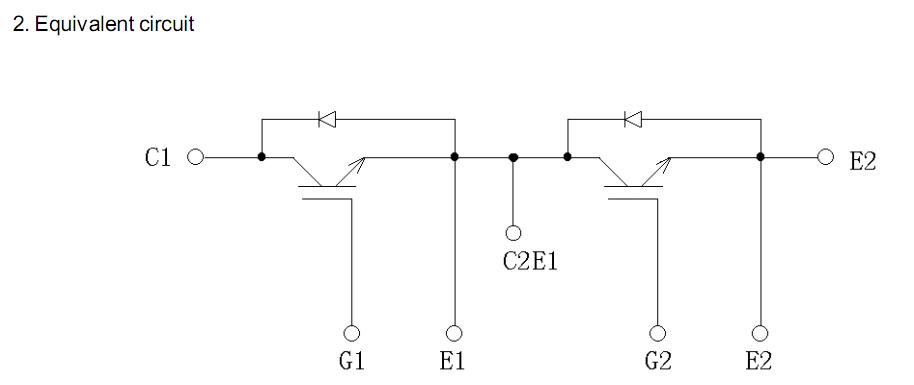

Diagrams
