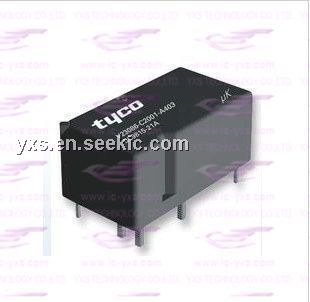

Product Summary

The v23086-r2802-a803 is designed as a automotive PCB double relay. And it can be used in car alarm, door control, door lock, hazard warning signal, heated front/rear screen, immobilizer, lamps front/rear/fog light, interior lights, seat control, sun roof, turn signal, window lifter, wiper control.

Parametrics

v23086-r2802-a803 absolute maximum ratings: (1)Contact arrangement: 2 form C, 2 CO; (2)Rated voltage: 10/12VDC; (3)Limiting making current: 40 A; (4)Limiting breaking current: 30A; (5)Contact material: AgSnO2; (6)Min. recommended contact load: 1A at 5VDC; (7)Initial voltage drop at 10A, typ./max.: 30/300 mV; (8)Operate/release time: typ. 3/1.5ms; (9)Initial dielectric strength between open contacts: 500VACrms; (10)Initial dielectric strength between contact and coil: 500VACrms.

Features

v23086-r2802-a803 features: (1)Small power relay; (2)Limiting continuous current 30A; (3)Minimal weight; (4)Low noise operation; (5)Wave (THT) and reflow (THR/pin-in-paste) solderable versions; (6)For single version refer to Single Micro Relay K; (7)For latching (bistable) version refer to Micro Relay K latching; (8)For surface mounted technology refer to SMT versions.

Diagrams

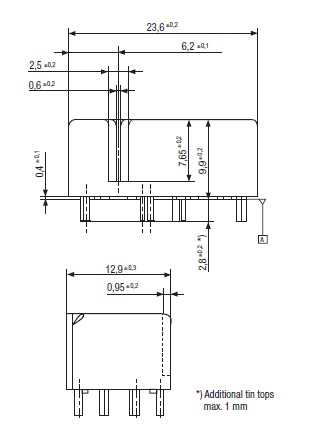

v23086-r2802-a803 dimension figure
