Product Summary

The TX2-4.5V is designed as a 2 A capacity relay with high surge voltage & high breakdown voltage.

Parametrics

TX2-4.5V absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 100 mΩ; (3)Contact material: Gold-clad silver alloy; (4)Temperature rise: Max. 50°C; (5)Operate time (at nominal voltage): Max. 4 ms (Approx. 2 ms); (6)Release time: Max. 4 ms (Approx. 1 ms).

Features

TX2-4.5V features: (1)Breakdown voltage between contacts and coil: 2,000 V; (2)Surge withstand between contacts and coil: 2,500 V; (3)High contact capacity: 2 A 30 V DC; (4)Surface-mount type available.

Diagrams

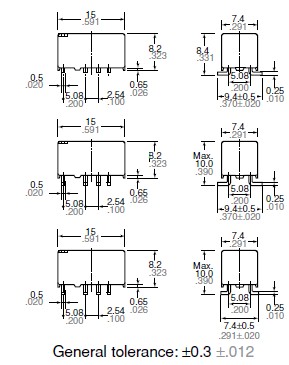

TX2-4.5V dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

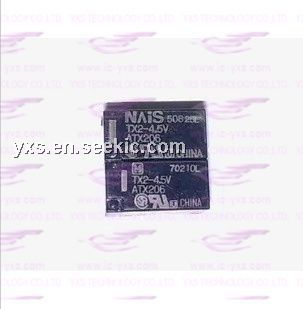

TX2-4.5V
TX2-4.5V
Panasonic Electric Works
Low Signal Relays - PCB 2A 4.5VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.00
1-25: $1.84
25-50: $1.63
50-100: $1.52
TX2-4.5V-1
TX2-4.5V-1
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 2A 30VDC 4.5VDC
Data Sheet
0-1: $2.18
1-25: $2.00
25-50: $1.79
50-100: $1.52
TX2-4.5V-TH
TX2-4.5V-TH
Panasonic Electric Works
Low Signal Relays - PCB TX Relay
Data Sheet
0-1: $2.54
1-25: $2.32
25-50: $2.08
50-100: $1.76
