Product Summary

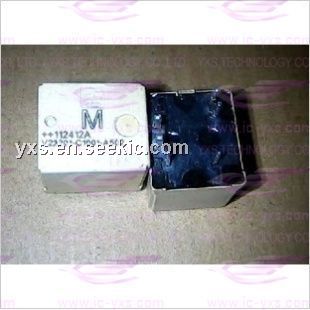

The V23201-C1001-A502 is a PCB Relay. It is ideal for: (1)ABS control; (2)Blower fans; (3)Cooling fan; (4)Engine control; (5)Fuel pump; (6)Glow plug; (7)Hazard warning signal; (8)Switched power supply.



Parametrics

V23201-C1001-A502 absolute maximum ratings: (1)Available for nominal voltages: 12 V; (2)Nominal power consumption of the unsuppressed coil at nominal voltage (monostable): 0.8 W; (3)Test voltage winding/contact: 500 VACrms; (4)Maximum ambient temperature range 1): –40 to +105°C; (5)Operate time at nominal voltage: Typ. 3 ms; (6)Release time at nominal voltage 2): Typ. 1.5 ms.

Features

V23201-C1001-A502 features: (1)60% volume reduced Power K at increased performance; (2)PCB area requirements minimized by 50% to only 293 mm2; (3)Size optimized to L x W x H (mm)18.3 x 16 x 15.9; (4)Limiting continuous current 40 A; (5)Maximum switch on current 200 A; (6)Increased ambient temperature 105°C; (7)Design allows highest reliability; (8)High shock and vibration resistance; (9)Wave (THT)and reflow (THR/pin-in-paste)solderable versions; (10)For latching (bistable)version refer to Power Relay PK2 Latching.

Diagrams

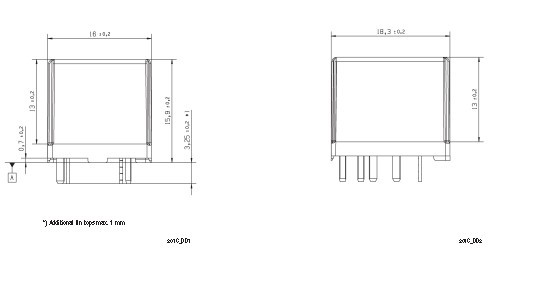

V23201-C1001-A502 pin connection
