Product Summary

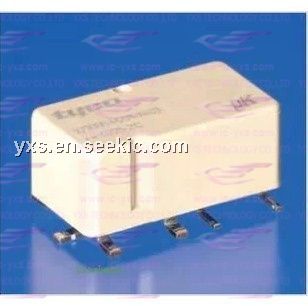

The V23086-U2011-A303 is designed as a single PCB relay. And it can be used in (1)Rear window and seat heating; (2)Wiper and indicator control; (3)Motor management.

Parametrics

V23086-U2011-A303 absolute maximum ratings: (1)Typical areas of application: Resistive/inductive load; (2)Rated voltage: 12 V; (3)Rated current: 15 A/20 A; (4)Contact material: Silver based; (5)Max. switching voltage/power: See load limit curve; (6)Min. recommended load: 1 A at 5 V; (7)Voltage drop at 10 A (initial) for NC/NO contacts: typ. 30 mV, 300 mV max..

Features

V23086-U2011-A303 features: (1)Smallest twin relay with surface mounted technology; (2)Minimal weight 8 g (0.28 oz.); (3)Maximum continuous current 30 A; (4)Two separate systems; (5)SMD terminals designed for convection and infrared reflow soldering; (6)ELV/RoHS/WEEE compliant.

Diagrams

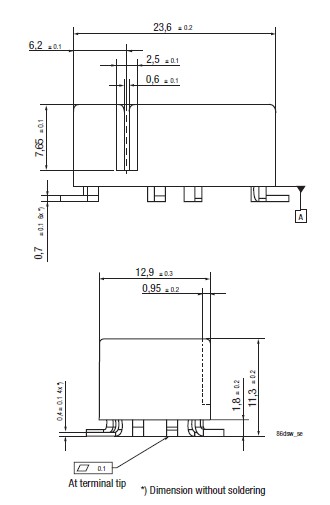

V23086-U2011-A303 dimension figure
