Product Summary

The V23084-C2001-A403 is a twin PCB relay. And it can be used in (1)Door locking systems; (2)Immobilizers; (3)Seat adjustment motors; (4)Seatbelt pretensioner; (5)Sunroof and window motors.

Parametrics

V23084-C2001-A403 absolute maximum ratings: (1)Contact configuration: 2 Changeover contacts/2 Form C; (2)Rated voltage: 12 V; (3)Contact material: AgNi 0,15 and AgSnO2; (4)Max. switching voltage/power: See load limit curve; (5)Min. recommended load: 1 A at 5 V; (6)Voltage drop at 10 A (initial) for NC/NO contacts: Typ. 30 mV, 300 mV max..

Features

V23084-C2001-A403 features: (1)Two separate systems; (2)Lamp applications; (3)Extremely space saving double relay.

Diagrams

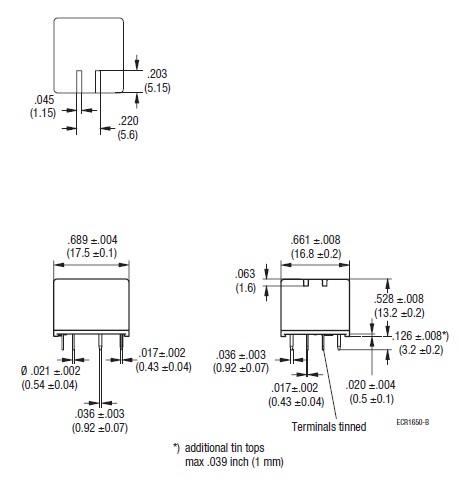

V23084-C2001-A403 dimension figure
