Product Summary
The V23049-B1007-A331-24V is a Solid State Relay. It is applicated for Automotive equipment CAN bus, imobilizer, Office equipment, Measurement and control equipment, Medical equipment and Safety equipment.
Parametrics
V23049-B1007-A331-24V absolute maximum ratings: (1)Limiting continuous current at max. ambient temperature: 1A; (2)Maximum switching current: 1A; (3)Maximum swichting voltage: 125VDC, 150VAC; (4)Maximum switching capacity: 30W. 60VA; (5)Thermoelectric potential: ＜100μV; (6)Initial contact resistance / measuring condition: 10 mA / 20 mV: ＜50mΩ.
Features
V23049-B1007-A331-24V features: (1)Directly triggerable with TTL standard modules such as ALS, HCT and ACT; (2)Slim line 13.5 x 7.85 mm, 0.531 x 0.309 inch; (3)Switching current 1 A; (4)1 changeover contact (1 form C / SPDT); (5)Bifurcated contacts; (6)Immersion cleanable; (7)High sensitivity results in low nominal power consumption: 65 to 130 mW for non-latching, 30 to 150 mW for latching; (8)Surge voltage resistance between contact and coil: 2.5 kV (2 / 10 μsec) meets the Bellcore Requirement GR-1089, 1.5 kV (10 / 160 μsec) meets FCC Part 68.

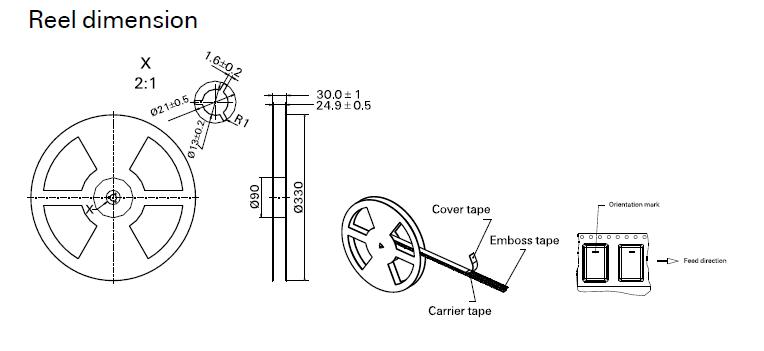

Diagrams
