Product Summary

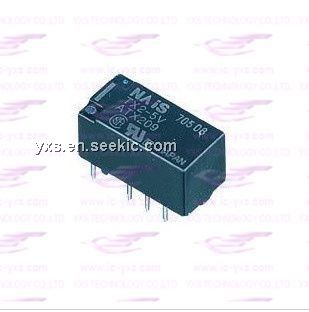

The tx2-5v is a 2A capacity relay with high surge voltage&high breakdown voltage.
Parametrics
tx2-5v absolute maximum ratings: (1) Nominal switching capacity (resistive load) : 2A 30V DC; (2) Max. switching power (resistive load) : 60W; (3) Max. switching voltage: 220V DC; (4) Max. switching current: 2A; (5) Min. switching capacity 1: 10μA 10 mV DC.
Features
tx2-5v features: (1) Breakdown voltage between contacts and coil: 2,000 V; (2) Surge withstand between contacts and coil: 2,500 V; (3) High contact capacity: 2A 30V DC; (4) Surface-mount type available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TX2-5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 5VDC DPDT NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
|
TX2-5V-1 |
Panasonic Electric Works |
Low Signal Relays - PCB 2 Form C 2A 30VDC 5VDC |
Data Sheet |
|
|
||||||||||||
