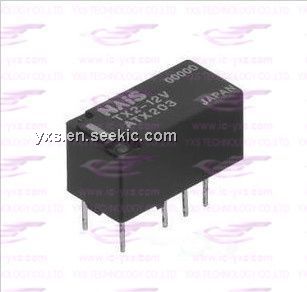

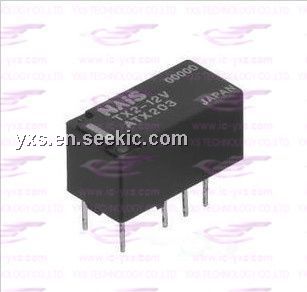

TX2-12V

TX2-12V, relay, 12 V, 11.7 mA, 140 mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	0.98 / Piece
21 ~ 60 :	0.81 / Piece
61 ~ 80 :	0.65 / Piece

PartNumber:: TX2-12V

Brand:: Panasonic Semiconductor - Panasonic | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-03

From Other Seller

Part Number:TX2-12V
US $0.65 - 0.98
Quantity:

piece

Product Summary

THE TX2-12V is a relay. Applications are (1)Communications (xDSL, Transmission); (2)Measurement; (3)Security; (4)Home appliances, and audio/visual equipment; (5)Automotive equipment; (6)Medical equipment.

Parametrics

TX2-12V absolute maximum ratings: (1)Nominal coil voltage: 12 V DC; (2)Pick-up voltage (at 20°C 68°F): 75%V or less of nominal voltage (Initial); (3)Drop-out voltage (at 20°C 68°F): 10%V or more of nominal voltage (Initial); (4)Nominal operating current [±10%] (at 20°C 68°F): 11.7 mA; (5)Coil resistance [±10%] (at 20°C 68°F): 1028 Ω; (6)Nominal operating power: 140 mW; (7)Max. applied voltage (at 20°C 68°F): 150%V of nominal voltage.

Features

TX2-12V features: (1)2,000 V breakdown voltage between contact and coil: The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts; (2)Outstanding surge resistance: Surge breakdown voltage between open contacts: 1,500 V 10×160μ sec. (FCC part 68); Surge breakdown voltage between contact and coil: 2,500 V 2×10μ sec. (Bellcore); (3)Nominal operating power: High sensitivity of 140mW: By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 140 mW (minimum operating power of 79 mW)has been achieved.; (4)High contact capacity: 2 A 30 V DC; (5)Compact size: 15.0(L) × 7.4(W) × 8.2(H); 591(L) × 291(W) × 323(H); (6)The use of gold-clad twin crossbar contacts ensures high contact reliability. We also offer a range of products with AgPd contacts suitable for use in low level load analog circuits (max. 10V DC 10 mA).
