Product Summary
TW2-5V is a kind of ultra small 2A polarized relay with 2500V surge voltage.
Parametrics
TW2-5V absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Contact material: Gold-clad silver nickel; (3)Initial contact resistance, max. (By voltage drop 6 V DC 1A): 60 mΩ; (4)Max. switching power: 62.5 VA 60 W; (5)Max. switching voltage: 220 V DC, 250 V AC; (6)Max. switching current: 2 A.
Features
TW2-5V features: (1)Surge withstand between contacts and coil: 2500V (Bellcore rating); (2)Current surge interrupt: 4.2A 700V AC; (3)High contact capacity: 2A 30V DC.

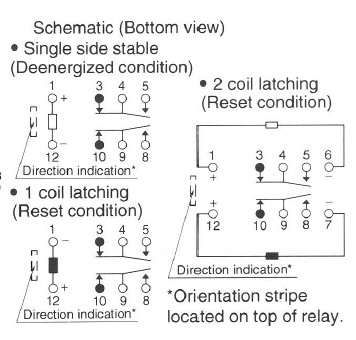

Diagrams
