Product Summary

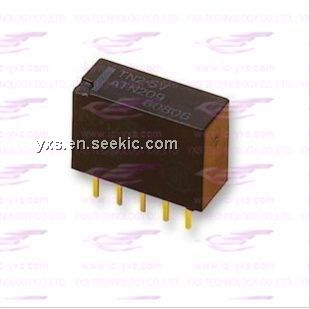

The TN2-5V is a 140mW slim polarized relay.

Parametrics

TN2-5V general specifications: (1)Nominal switching capacity (resistive load): 1 A 30 V DC, 0.5 A 125 V AC; (2)Max. switching power (resistive load):30 W, 62.5 VA; (3)Max. switching voltage:110 V DC,125 V AC; (4)Max. switching current:1 A; (5)Min. switching capacity:10 μA 10 mV DC; (6)Arrangement:2 Form C; (7)Initial contact resistance, max.(By voltage drop 6 V DC 1A):60 mΩ; (8)Contact material:Gold-clad silver.

Features

TN2-5V features: (1)Small size for minimal PC board mounting requirements; (2)Small header area makes higher density mounting possible; (3)High sensitivity: 140 mW nominal operating power (single side stable 3-12V type); (4)Surge voltage withstand: 1500 V FCC Part 68; (5)Sealed construction allows automatic cleaning; (6)Self-clinching terminal also available.

Diagrams

TN2-5V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TN2-5V
TN2-5V

Panasonic Electric Works

Low Signal Relays - PCB 1A 5VDC DPDT NON-LATCHING PCB

Data Sheet

0-1: $2.43
1-25: $2.24
25-50: $2.03
50-100: $1.79
TN2-5V-3
TN2-5V-3

Panasonic Electric Works

Low Signal Relays - PCB 2 Form C 1 Form A Gold Contact 5V

Data Sheet

0-1: $2.80
1-25: $2.56
25-50: $2.29
50-100: $1.94
