Product Summary
The RY24W-K is designed as a 2 poles - 1 to 2 A (for signal switching) miniature relay.
Parametrics
RY24W-K absolute maximum ratings: (1)Contact Arrangement: 2 form C (DPDT); (2)Contact material: Gold overlay silver-palladium; (3)Maximum Carrying Current: 1.25 A; (4)Maximum Switching Power: 60 VA/24 W; (5)Resistance (initial): Maximum 100 mΩ (at 1 A 6 VDC); (6)Operate (at nominal voltage): Maximum 6 ms; (7)Release time (at nomi. Volt.): 3ms.
Features
RY24W-K features: (1)Ultra high sensitivity; (2)UL, CSA recognized; (3)Conforms to FCC rules and regulations Part 68 - Surge strength 1,500 V; (4)High dielectric strength type available (RY-WF type); (5)Contact arrangement MBB type available (RY-D type); (6)High reliability-bifurcated contacts; (7)Wide operating range; (8)DIL pitch terminals; (9)Plastic sealed type.

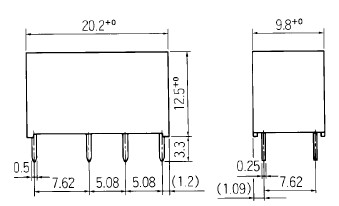

Diagrams
