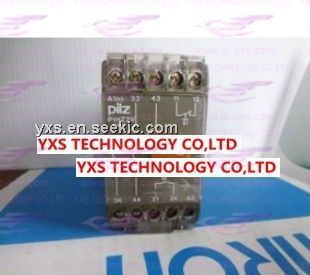

Product Summary

The P1HZ 2V is a two-hand relay in accordance with VDE 0113-1, 11/98, EN 60204-1, 12/97 and IEC 204-1, 11/98.

Parametrics

P1HZ 2V absolute maximum ratings: (1)Supply voltage: 24 to 240VAC, 24BVDC; (2)Tolerance: 85 to 110%; (3)Residual ripple DC: Max. 20%; (4)Power consumption: approx. 4 VA/2 W; (5)Voltage and current at the input circuits 1/2: 24 VDC, 40 mA; (6)Delay-on energisation EN 574: 10 ms; (7)Delay-on ed-energisation: approx. 30 ms; (8)Simuiltaneity channel 1/2: max. 500 ms.

Features

P1HZ 2V features: (1)conforms to EN 574, type IIIA with partial fail to safety and in accordance with EN 954, category 1; (2)45 mm, P-75-housing, DIN-rail mounting; (3)positive-guided relay outputs: 2 safety contacts (N/O); (4)increase in the number of safety contacts available by connecting expander modules.

Diagrams

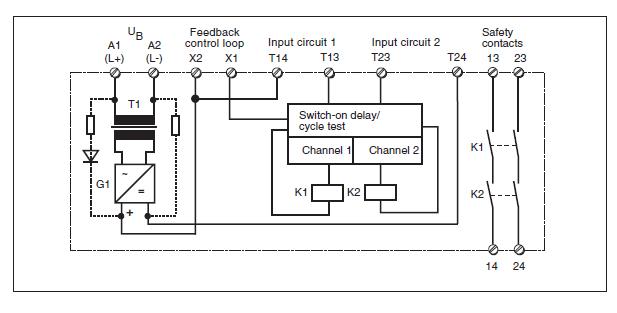

P1HZ 2V block diagram
