Product Summary

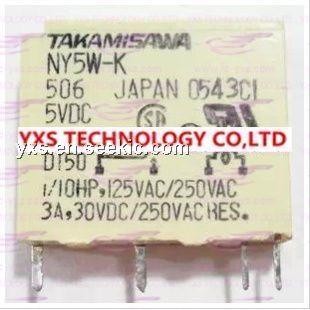

The NY5W-K is a power relay.
Parametrics
NY5W-K absolute maximum ratings: (1)Nominal voltage: 5 VDC; (2)Coil resistance (±10%): 208 Ω; (3)Must operate voltage: 3.35 VDC; (4)Must release voltage: 0.5 VDC; (5)Nominal power: 120 mW.
Features
NY5W-K features: (1)Ultra slim type with 5 mm thickness: Good for high density mounting; (2)Low power consumption and high sensitivity: Nominacoipower: 120 mW; Operating power: 54 mW; (3)UL, CSA, VDE recognized; (4)Conforms to IEC 1010-1 and 1131-2; (5)Wide operating range; (6)SIL pitch terminals; (7)Plastic sealed type; (8)Compatible with solid state I/O module type SN (see page 376)in size and pin (terminal)arrangement; (9)Environmentally friendly cadmium free contact type is available; (10)RoHS compliant since date code: 0439C1 please see page 6 for more information.

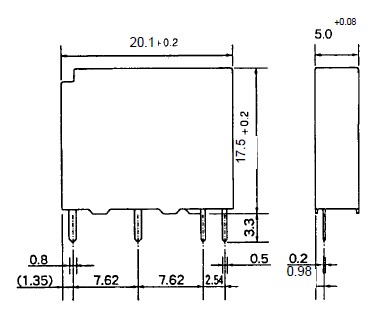

Diagrams
