Product Summary

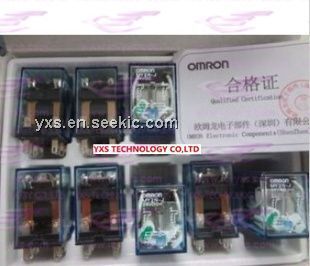

The MY2N-J is a general-purpose relay.

Parametrics

MY2N-J absolute maximum ratings: (1)Contact resistance: 100 mΩ max.; (2)Operate time: 20 ms max.; (3)Release time: 20 ms max.; (4)Ambient temperature Operating -55°C to 70°C (-67°F to 158°F) with no icing; (5)Ambient humidity Operating 5% to 85% RH; (6)Weight Approx. 35 g; (7)Vibration resistance Destruction:10 to 55 Hz, 1.0 mm double amplitude.

Features

MY2N-J features: (1)Models with lockable test buttons now available; (2)Multiple features available, including operation indicators (mechanical and LED indicators), lockable test button, built-in diode and CR (surge suppression), bifurcated contacts, etc; (3)Environment-friendly cadmium-free contacts.; (4)Wide range of Sockets (PY, PYF Series) and optional parts; (5)Max. Switching Current: 2-pole: 10 A, 4-pole: 5 A; (6)Provided with nameplate; (7)RoHS Complaint.

Diagrams

MY2N-J dimension figure
