Product Summary
The MR62-48FSR is a kind of DPDT Signal Relay.Typical applications include: (1)Telephonic equipment; (2)Telecommunications equipment; (3)Security equipment; (4)Test and Measurement equipment; (5)Electronic Consumer and Audio Visual equipment.
Parametrics
MR62-48FSR absolute maximum ratings: (1)Maximum switching power: 60W 125 VA; (2)Maximum switching voltage: 220 VDC 250 VAC; (3)Maximum switching current: 2A; (4)Maximum carrying current: 3A.
Features
MR62-48FSR features: (1)DIL package; (2)BT type 47 approved; (3)1500V FCC surge betweecoil and contacts and adjacent contacts; (4)Fully sealed for immersiocleaning; (5)Bifurcated crossbar contacts for high reliability; (6)UL/CSA approved.

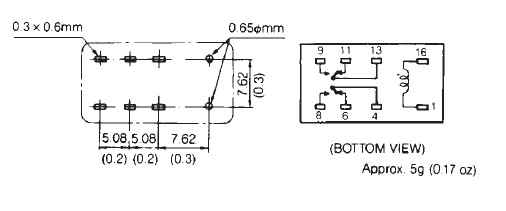

Diagrams
