Product Summary
The LG2-AB is a voltage sensor.
Parametrics
LG2-AB absolute maximum ratings: (1)Repeat accuracy +/-3% max. (with voltage fluctuations at the rate of 1 V/s); (2)Operate time: 0.5 s max. (when input changes from 0 V to 120% must-operate voltage); (3)Release time: 0.5 s max. (when input changes from 120% of the must-release voltage to 0 V); (4)Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min (between electric circuitry and mounting panel); (5)Vibration Malfunction: 16.7 Hz, 1-mm double amplitude; (6)Ambient operating temperature: -10 to 40°C (with no condensation).
Features
LG2-AB features: (1)DPDT output contacts expand the application of the Sensor to wide-ranging fields including control, alarms, and indication; (2)Voltage control is possible in the same easy manner as electromagnetic relays, as the output relay of the sensor can be driven directly with a detection signal; (3)Wide voltage setting range with fine setting capability.

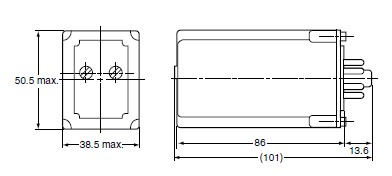

Diagrams
