Product Summary

The K8AC-H13PC-FLK is a digital heater element burnout detector.

Parametrics

K8AC-H13PC-FLK absolute maximum ratings: (1)Power supply voltage 100 to 240 VAC (50/60 Hz); (2)Operating voltage range 85% to 110% min. of the rated power supply voltage (85 to 264 V); (3)Power consumption: 35 VA max. (at max. load); (4)Applicable circuits Single-phase or three-phase (with same model); (5)Applicable control methods Contactor ON/OFF control (e.g., temperature controller with relay output); (6)Ambient operating temperature: -10 to +55°C (with no icing or condensation); (7)Ambient operating humidity: 25% to 85% (with no condensation); (8)Storage temperature -25 to +65°C (with no icing or condensation).

Features

K8AC-H13PC-FLK features: (1)Compatible with contactor, SSR, cyclic control, and phase control methods; (2)Compatible with a wide range of heater capacities, from 0.200 to 200.0 A AC (range covered by 3 models); (3)Voltage fluctuation compensation function enables accurate heater burnout detection, because power supply voltage fluctuations resulting in heater current fluctuation will not cause faulty outputs; (4)Detects burnouts for even one heater when using multiple heaters; (5)If the gate function is disabled, the gate input can be used as an undercurrent/overcurrent relay or for motor or lamp loads (2; (6)circuits); (7)CE Marking; (8)Contributes to preventative maintenance for heater burnout.

Diagrams

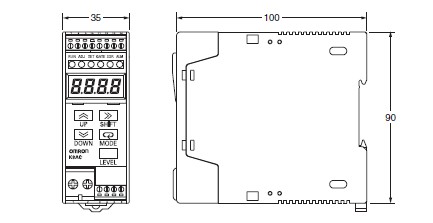

K8AC-H13PC-FLK dimension figure
