Product Summary
The K3HB-XAD-CPAC21 is a digital indicator.
Parametrics
K3HB-XAD-CPAC21 absolute maximum ratings: (1)Maximum load voltage: 24 VDC; (2)Maximum load current: 50 mA; (3)Leakage current: 100 μA max.; (4)Data length: 7 bits or 8 bits; (5)Stop bit length: 2 bits or 1 bit; (6)Baud rate: 9600/19200/38400 bps; (7)Rated through current: 5 A; (8)ON residual voltage: 2 V max..
Features
K3HB-XAD-CPAC21 features: (1)Easy recognition of judgment results using two-color display that can be switched between red and green; (2)Equipped with a position meter for monitoring operating status trends; (3)External event inputs allows using various measurement and discrimination applications; (4)Series expanded to include DeviceNet models; (5)Short body with depth of only 95 mm (see note) (from behind the front panel); (6)UL certification (Certification Mark License); (7)CE Marking conformance by third party assessment body; (8)Water-resistant enclosure conforms to NEMA 4X (equivalent to IP66).

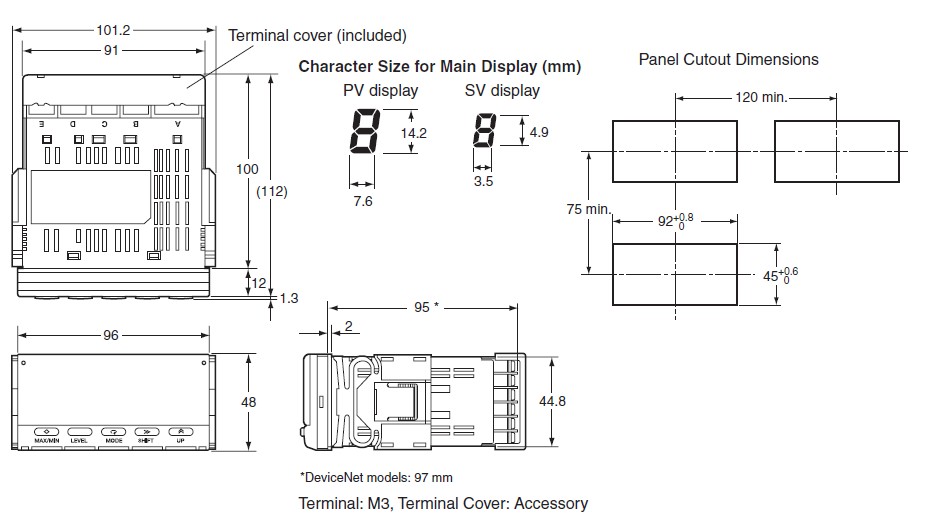

Diagrams
