Product Summary

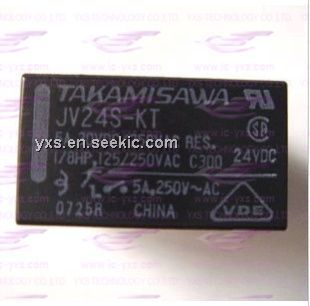

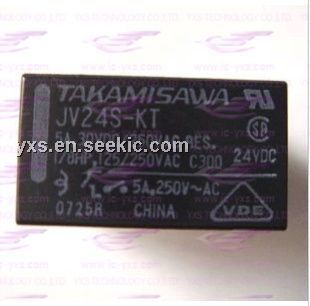

The JV24S-KT is a power relay.
Parametrics
JV24S-KT absolute maximum ratings: (1)Rated Coil Voltage: 24VDC; (2)Coil Resistance +/- 10%: 1920Ohm; (3)Must Operate Voltage: 15.8VDC; (4)Must Release Voltage: 1.2VDC; (5)Rated Power: 300mW.
Features
JV24S-KT features: (1)UL, CSA, VDE, SEMKO, CQC recognized; (2)UL class B (130℃) wire class; (3)Low profile and space saving: Height: 12.5 mm, Mounting space: 175 mm; (4)High sensitivity in small package: Operating power: 0.112 to 0.13W, Nominal power: 0.2 to 0.3 W; (5)High insulation with reinforced insulation system (between coil and contacts): Insulation distance: 8 mm, Dielectric strength: 5,000 VAC, Surge strength: 10,000 V; (6)Plastic materials: UL94 flame class V-0 -UL CTI level class 2; (7)Plastic sealed type, RTIII; (8)RoHS compliant.
Diagrams
