Product Summary

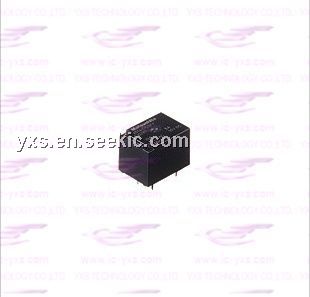

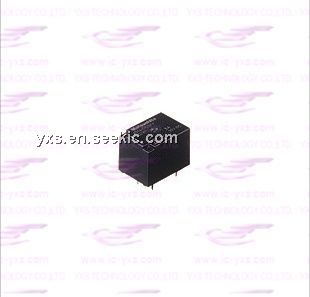

The JS1-12V is one kind of 1a/1c 10A cubic type power relay. It can be used in (1)Home appliances: Air conditioner, heater, etc.; (2)Office machines: PPC, facsimile, etc.; (3)Vending machines.
Parametrics
JS1-12V absolute maximum ratings: (1)Contact resistance (initial): Max. 100 mΩ (By voltage drop 6 V DC 1A); (2)Max. switching voltage: 250V AC, 100V DC (0.5A); (3)Max. switching current: 10A (AC), 5A (DC); (4)Nominal operating power: 360mW; (5)Min. switching capacity: 100mA, 5V DC; (6)Max. operating speed: 20 times/min. (at nominal switching capacity).
Features
JS1-12V features: (1)Miniature size with universal terminal footprint; (2)High contact capacity: 10 A; (3)TV-5 type available (Standard type) 1 Form A type - TV-5 and 1 Form C type - TV-5 (N.O. side only); (4)VDE, TUV also approved; (5)Sealed construction for automatic cleaning (Standard type); (6)Class B and F coil insulation type also available.; (7)EN60335-1 GWT compliant (Tested by VDE) type available; (8)Surge voltage 6 kV type also available.

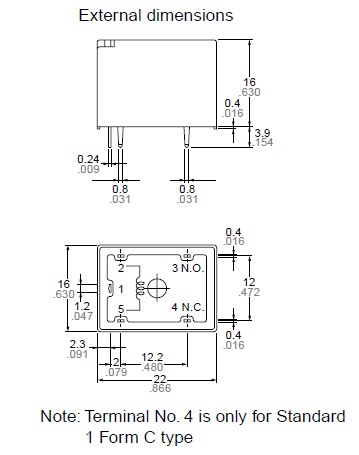

Diagrams
