Product Summary
The H7CX-A4WSD is a multifunction preset counter.
Parametrics
H7CX-A4WSD absolute maximum ratings: (1)Rated supply voltage: 100 to 240 VAC (50/60 Hz), 12 to 24 VDC; (2)Operating voltage range: 85% to 110% of rated supply voltage (90% to 110% at 12 VDC); (3)Power consumption: Approx. 9.2 VA at 264 VAC; (4)Max. counting speed: 30 Hz or 5 kHz; (5)External power supply: 12 VDC (±10%), 100 mA.
Features
H7CX-A4WSD features: (1)Highly visible display with backlit negative transmissive LCD; (2)Programmable PV color to visually alert when output status changes (screw terminal block models); (3)Intuitive setting enabled using ergonomic up/down digit keys (4- digit models)and DIP switch; (4)Configurable as 1-stage counter, 2-stage counter, total and preset counter, batch counter, dual counter, or tachometer. (Configurability varies with model.); (5)PNP/NPN switchable input; (6)Finger-safe terminals (screw terminal block models); (7)Meets a variety of mounting requirements: Screw terminal block models, and pin-style terminal models; (8)NEMA4/IP66 compliance; (9)Six-language instruction manual.

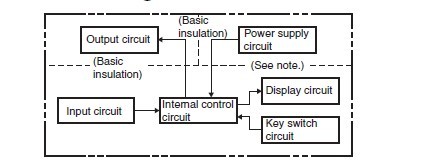

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H7CX-A4WSD DC 12-24 |
Omron Industrial |
Tachometers & Counters Scrw Non-conf Tr.out 4-digits |
Data Sheet |
Negotiable |
|
||||||||||||
|
H7CX-A4WSDDC12-24 |
Omron Electronics Inc-IA Div |
SCRW NON-CONF TR OUT 4-DIGITS |
Data Sheet |
|
|
||||||||||||
|
H7CX-A4WSD-N DC12-24 |
Omron Industrial |
Tachometers & Counters Scrw Nonconf Tr .out 4digits |
Data Sheet |
|
|
||||||||||||
