Product Summary

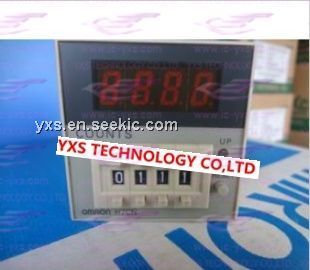

The H7CN-XHN is a solid-state twin timer.

Parametrics

H7CN-XHN absolute maximum ratings: (1)Supply voltage (AC): 100 to 240 VAC, 50/60 Hz; (2)Supply voltage (DC): 12 to 48 VDC (20% max. ripple); (3)Operating voltage range: 85 to 110% of rated voltage; (4)Power consumption: Approx. 12 VA/2.5 W at 240 VAC, 50 Hz and Approx. 2.5 W at 48 VDC; (5)Max. counting speeds (CP1, CP2): 30 cps with contact and solid-state inputs; 5,000 cps with solid-state inputs only; (6)Minimum pulse widths: 16.7 ms at 30 cps (ON/OFF ratio of 1:1) and 0.1 ms at 5 kcps (ON/OFF ratio of 1:1); (7)Ambient operating temperature: -10° to 55°C (14° to 131°F); (8)Storage temperature: -25° to 65°C (-13° to 149°F).

Features

H7CN-XHN features: (1)Choose from UP, DOWN and reversible counting; (2)Count speed up to 5 K counts per second; (3)Wide-range AC or DC supply voltages; (4)Contact and solid-state output models available; (5)Memory protection circuit available on AC models; (6)Easy-to-read 8 mm-high LED display; (7)Panel mounting adapter, sockets, and accessories available separately.

Diagrams

H7CN-XHN dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H7CN-XHN AC100-240
H7CN-XHN AC100-240

COUNTER DGTL UP PRESET 100-240V
Data Sheet
0-1: $170.54
1-25: $157.91
25-50: $147.38
50-100: $136.85
H7CN-XHN DC12-48
H7CN-XHN DC12-48

COUNTER DGTL 4DIGIT DISPLAY
Data Sheet
0-1: $222.68
H7CN-XHN-AC
H7CN-XHN-AC
Omron Industrial
Controllers Up count 100-240 VAC 5cps SPST-NO output
Data Sheet
Negotiable
H7CN-XHN-AC100240
H7CN-XHN-AC100240
Omron Industrial
Controllers Counter Digital LED
Data Sheet
0-1: $204.55
1-2: $196.37
2-5: $190.92
5-10: $178.52
H7CN-XHNS AC100-240
H7CN-XHNS AC100-240
Omron Industrial
Controllers COUNTER DIGITAL LED
Data Sheet
0-1: $190.71
1-5: $178.16
5-10: $172.52
10-20: $169.39
H7CN-XHNM AC100-240
H7CN-XHNM AC100-240

COUNTER DIGITAL LED
Data Sheet
0-1: $202.64
H7CN-XHNS DC12-48
H7CN-XHNS DC12-48

COUNTER DGTL 4DIGIT DISPLAY
Data Sheet
0-1: $222.68
