Product Summary
The H3DE-S1 is a solid-state timer.
Parametrics
H3DE-S1 absolute maximum ratings: (1)Power supply voltage: 24 to 240 VAC/DC, 50/60 Hz; (2)Allowable voltage fluctuation range: 24 to 240 VAC/DC: 85% to 110% of rated voltage; (3)Power reset: Minimum power-OFF time: 0.1 s; (4)Reset voltage: 10% of rated voltage; (5)Control output: Contact output, 5 A at 250 VAC with resistive load (cosφ = 1), 5 A at 30 VDC with resistive load; (6)Ambient operating temperature: -20 to 55°C (with no icing); (7)Storage temperature: -40 to 70°C (with no icing); (8)Ambient operating humidity: 25% to 85%.
Features
H3DE-S1 features: (1)A wide AC/DC power supply range (24 to 240 VAC/DC); (2)All sub-series include models with 12-VDC power supply; (3)G-type Models (H3DK-G) now include model with 240 to 440- VAC power supply; (4)UL , CSA, and CCC certification and EN 61812-1 compliance. CE Marking; (5)EMC (EN 61812-1) compliance for application in heavy industrial,; (6)residential, commercial, or light industrial environments; (7)Finger-safe terminal block and captive screws according to EN 50274.

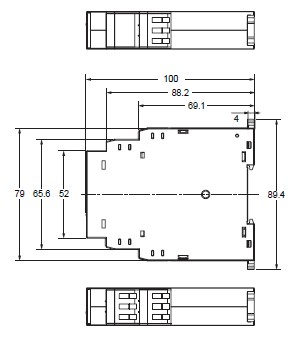

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 H3DE-S1 AC/DC24-230 |
|
RELAY TIMER ANALOG DIN 4 MODE |
Data Sheet |
Negotiable |
|
||||
 |
H3DE-S1AC/DC24-230 |
Omron Industrial |
Stopwatches & Timers STANDARD SOLID STATE |
Data Sheet |
Negotiable |
|
||||
