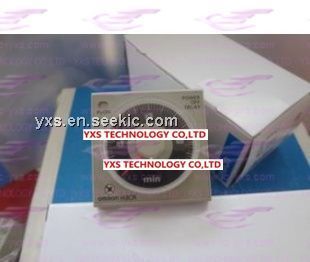

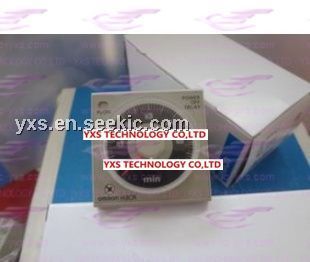

The H3CR-H8L is a solid-state power OFF-delay timer.
Parametrics
H3CR-G8EL absolute maximum ratings: (1)Rated supply voltage: 100 to 120 VAC (50/60 Hz), 200 to 240 VAC (50/60 Hz), 24 VAC/VDC (50/60 Hz), 48 VDC, 100 to 125 VDC; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Ambient humidity Operating: 35% to 85%; (4)Accuracy of operating time ±0.2% FS max.; (5)Setting error ±5% FS ±0.05 s max.; (6)Power consumption: 100 to 120 VAC: approx. 6 VA (2.6 W) at 120 VAC and 200 to 240 VAC: approx. 12 VA (3.0 W) at 240 VAC; (7)Control outputs Contact output:5 A at 250 VAC/30 VDC, resistive load (cosφ = 1).
Features
H3CR-H8L features: (1)Long power OFF-delay times; (2)S-series: up to 12 seconds; (3)M-series: up to 12 minutes; (4)Models with forced-reset input are available; (5)11-pin and 8-pin models are available.

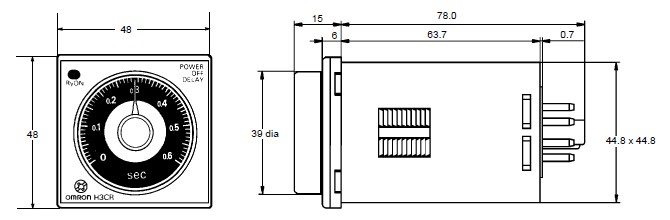

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H3CR-H8L AC/DC24 M |
Omron Industrial |
Controllers TIMER PWR-OFF DELAY |
Data Sheet |
|
|
||||||||||||||
|
H3CR-H8L AC/DC24 S |
|
TIMER POWER-OFF DELAY 8PIN |
Data Sheet |
|
|
||||||||||||||
|
H3CR-H8L AC200-240 S |
Omron Industrial |
Controllers TIMER PWR-OFF DELAY |
Data Sheet |
|
|
||||||||||||||
 |
H3CR-H8L AC100-120 S |
Omron Industrial |
Stopwatches & Timers Timer Power-OFF Delay |
Data Sheet |
|
|
||||||||||||||
 |
H3CR-H8L AC200-240 M |
Omron Industrial |
Stopwatches & Timers TIMER PWR-OFF DELAY |
Data Sheet |
|
|
||||||||||||||
|
H3CR-H8L AC100-120 M |
|
RELAY TIMER 0-12MIN OFF-DELAY |
Data Sheet |
|
|
||||||||||||||
 |
H3CR-H8L-AC/DC24(S) |
Omron Industrial |
Stopwatches & Timers SS TIMER SEC/RANGE |
Data Sheet |
|
|
||||||||||||||
|
H3CR-H8L DC100-125 S |
Omron Industrial |
Stopwatches & Timers TIMER PWR-OFF DELAY |
Data Sheet |
|
|
||||||||||||||
