Product Summary

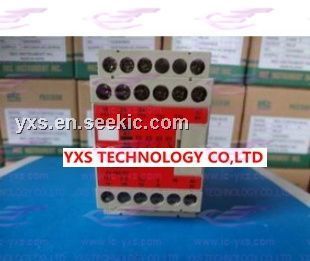

The G9SA-TH301 is a Two-hand Controller safety relay, which offers a compledte line-up of compact units.

Parametrics

G9SA-TH301 absolute maximum ratings: (1)Power supply voltage: 24 VAC (50/60 Hz) or 24 VDC, 100 to 240 VAC (50/60 Hz); (2)Operating voltage range: 85% to 110% of rated power supply voltage; (3)Power consumption: 1.8 VA/1.7 W max. or 9 VA max.; (4)Input current: 40 mA max.; (5)Rated load: 250 VAC 5 A or 30 VDC 5 A; (6)Rated carry current: 5 A; (7)Contact resistance: 100 mΩ; (8)Operating time: 30 ms max.; (9)Response time: 10 ms max.; (10)Insulation resistance: 100 MΩ min. (at 500 VDC); (11)Ambient operating temperature: -25 to 55℃ (with no icing or condensation); (12)Ambient operating humidity: 35% to 85%.

Features

G9SA-TH301 features: (1) 45-mm wide Unit of OFF-delay poles, as well as a Two-hand Controller. Also available are 17.5-mm wide Expansion Units with 3 poles and 3 OFF-delay poles; (2)Simple expansion connection; (3)OFF-delay models have 15-step OFF-delay settings; (4)Conforms to EN standards. (BG approval); (5)Certified by UL and CSA; (6)Both DIN track mounting and screw mounting are possible.

Diagrams

G9SA-TH301 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
G9SA-TH301 AC/DC24
G9SA-TH301 AC/DC24
Omron Electronics
Safety Relays 2-Hand Controller 3PST-NO 24VAC/DC
Data Sheet
0-1: $222.45
1-10: $217.50
10-25: $210.00
G9SA-TH301 AC100-240
G9SA-TH301 AC100-240
Omron Electronics
Safety Relays Two Hand Controller AC
Data Sheet
0-1: $268.94
1-10: $260.55
10-25: $253.20
