Product Summary
The G3S4-D is a solid state relay.
Parametrics
G3S4-D absolute maximum ratings: (1)Operate time: 1 ms max.; (2)Release time: 1/2 of load power source cycle + 1 ms. max.; (3)Output ON voltage drop: 1.6 V (RMS) max.; (4)Leakage current: 2 mA max.; (5)Insulation resistance: 100 MΩ min. (500 VDC); (6)Dielectric strength: 2,500 VAC, 50/60 Hz for 1 min; (7)Vibration resistance: Malfunction: 10 to 55 Hz, 1.5-mm double amplitude; (8)Ambient temperature: Operating: -30°C to 80°C (with no icing or condensation).
Features
G3S4-D features: (1)Ultra-small, dual in-line package (DIP) SSR; (2)Terminals compatible with G6B Electromagnetic Relay; (3)Mix with G6Bs as the application requires; (4)Close side-by-side mounting possible. In addition, heat sink dedicated to this mounting style also available; (5)Both AC- and DC-load versions available; (6)High isolation of 2,500 VAC between input and output freeing inputs from noise surge generated in the load; (7)Approved by UL and CSA.

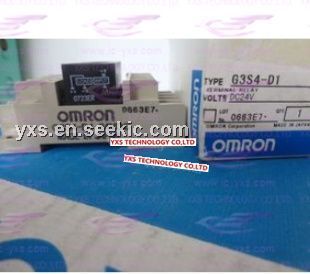

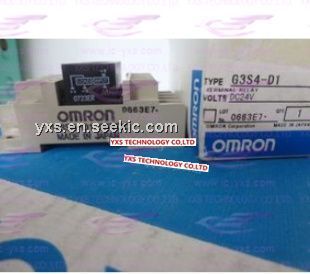

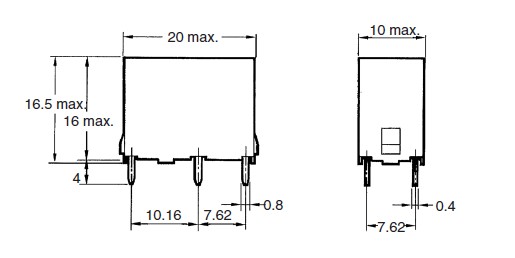

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G3S4-D DC12 |
Omron Industrial |
Solid State Relays Solid State Relay |
Data Sheet |
|
|
||||||||||||
|
G3S4-D1 DC5 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
|
G3S4-D1 DC12 |
|
RELAY SSR SPST-NOX4 600MA 12VDC |
Data Sheet |
|
|
||||||||||||
|
G3S4-D DC24 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
