Product Summary

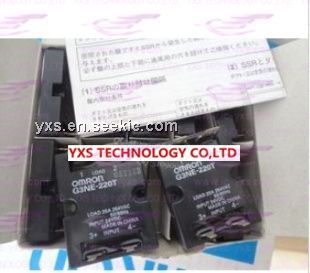

The G3NE-220T is a SSR.
Parametrics
G3NE-220T absolute maximum ratings: (1)Output ON voltage drop: 1.6 V (RMS)max.; (2)Leakage current: 5 mA max. (at 200 VAC); (3)Insulation resistance: 100 MΩ min. (at 500 VDC); (4)Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min; (5)Vibration resistance: 10 to 55 to10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)(Mounted to DIN track); (6)Shock resistance Destruction: 1000 m/s2; (7)Ambient storage temperature: -30 to 100°C (with no icing or condensation); (8)Ambient operating temperature: -30 to 80°C (with no icing or condensation).
Features
G3NE-220T features: (1)Wide load voltage range: 75 to 264 VAC. Both 100-V and 200- V loads can be handled with the same model; (2)Dedicated, compact aluminum PCB and power elements used; (3)Built-in varistor effectively absorbs external surges; (4)Quick-connect #110 input terminals and #250 output connections; (5)UL, CSA, and IEC/EN (TÜV)approval obtained for “-US” models.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G3NE-220T-2-US DC5 |
Omron Industrial |
Solid State Relays SSR IN TERM 187 |
Data Sheet |
|
|
||||||||||||
|
G3NE-220T-DC12 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
|
G3NE-220TL-US DC5 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
|
G3NE-220TL-US-DC24 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
 |
G3NE-220TL-US DC12 |
Omron Industrial |
Solid State Relays Solid State Relay |
Data Sheet |
|
|
||||||||||||
 |
G3NE-220TL-US DC24 |
|
RELAY SSR 20A 24VDC |
Data Sheet |
|
|
||||||||||||
|
G3NE-220T-US-DC12 |
Omron Industrial |
Solid State Relays 12VDC/100-240VAC 20A |
Data Sheet |
|
|
||||||||||||
|
G3NE-220T-US-DC5 |
Omron Industrial |
Solid State Relays 5VDC/100-240VAC 20A |
Data Sheet |
|
|
||||||||||||
