Product Summary
The G3F-203SN is a Solid State Relay.
Parametrics
G3F-203SN absolute maximum ratings: (1)Rated Load Power Supply Voltage: 200VAC; (2)Rated Load Current: 3A; (3)Rated output load: 3 A at 100 to 240 VAC; (4)Rated input voltage: 5 to 24 VDC; (5)Operating voltage: 4 to 28 VDC; (6)Impedance: 15 mA max.; (7)Load voltage range: 75 to 264 VAC; (8)Load current: 0.1 to 3 A at 40℃; (9)Inrush current: 45 A (60 Hz).
Features
G3F-203SN features: (1)Shape-compatible with mechanical relays; (2)Certified by UL, CSA, and VDE (model numbers with a suffix of "-VD"; (3)Socket type, same size as MY Power Relays; (4)Operation indicator provided to confirm input (model numbers with "N" before the suffix).

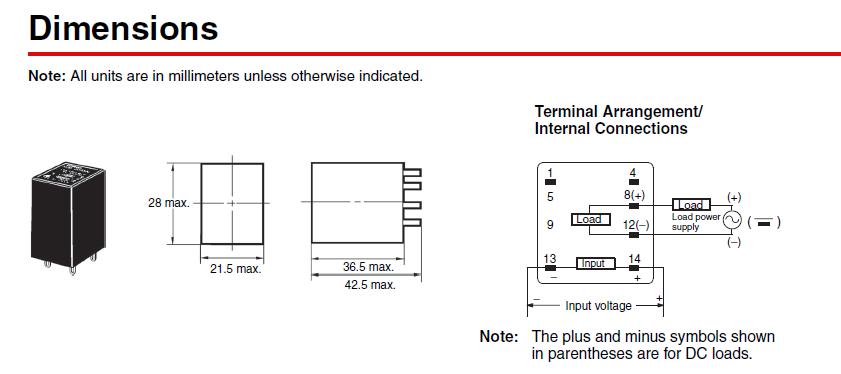

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G3F-203SN DC5-24 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
|
|
|||||||||||||
G3F-203SN-VD DC5-24 |
RELAY SSR 200V 3A 5-24VDC |
Data Sheet |
|
|
