Product Summary

The G3FM-2R5SLN is a kind of Solid-state Relay.

Parametrics

G3FM-2R5SLN absolute maximum ratings: (1)Operate time: 5 ms max.; (2)Release time: 10 ms max.; (3)Output ON voltage drop: 3 V (RMS) max.; (4)Leakage current: 0.1 mA max.; (5)Insulation resistance: 100 MW min. (at 500 VDC); (6)Dielectric strength: 1,500 VAC, 50/60 Hz for 1 min; (7)Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude; (8)Shock resistance: 1,000 m/s2.

Features

G3FM-2R5SLN features: (1)1 mA to 500 mA micro-load switching; (2)Switches to both AC and DC with no polarity; (3)Switches for a wide range of voltages; 19.2 to 264 VAC, 19.2 to 125 VDC; (4)Switches full- and half-wave rectifier AC loads; (5)Same sizes and terminal arrangement as OMRON Power Relay MY Series; (6)Operating indicator provided; (7)Switches MY Series (without bleeder resistor); (8)Superior surge absorption with a built-in varistor; (9)Optimum SSR to control minute load, valves, and solenoids.

Diagrams

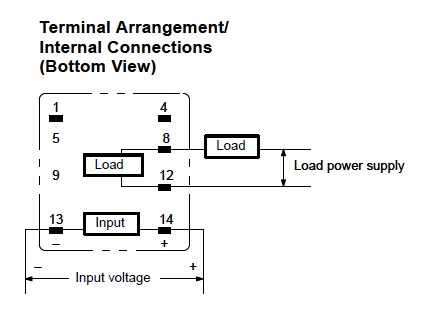

G3FM-2R5SLN circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G3FM-2R5SLN DC12
G3FM-2R5SLN DC12

Omron Industrial

Solid State Relays SOLID STATE RELAY

Data Sheet

0-1: $22.79
1-25: $22.14
25-50: $21.49
50-100: $20.84
G3FM-2R5SLN-DC24
G3FM-2R5SLN-DC24

Omron Industrial

Solid State Relays SOLID STATE RELAY

Data Sheet

0-1: $25.51
1-25: $24.78
25-50: $24.05
50-100: $23.32
