Product Summary

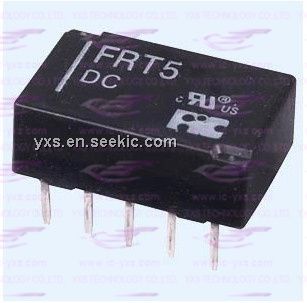

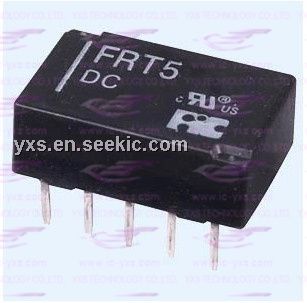

The FRT5 is designed as a compact size telecom latching relay. And it can be used in (1)telecommunication equipment; (2)office equipment; (3)security alarm systems; (4)measuring instruments; (5)medical monitoring equipment; (6)audio visual equipment; (7)flight simulator sensor control.
Parametrics
FRT5 absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance: 50 mΩ; (3)Contact material: gold clad silver alloy; (4)Contact rating (resistive load): M1A 30VDC / 0.5A 125VAC; (5)Switching voltage: DC 220V Max. AC 250V Max.; (6)Switching Current: 1A Max..
Features
FRT5 features: (1)compact size & low profile: 14(L) X 9(W) X 5(H) mm (standard type) and 14.2 (L) X 9.3(W) X 5.3(H) mm (SMD type); (2)Conforms to FCC Part 68 1500V Surge Dielectric; (3)DIL Pitch Terminals; (4)Surface Mount Type with "L" Shaped Terminals; (5)Fully Sealed (Immersion Cleanable); (6)Single or Double Coil Latching Type is available.; (7)High Sensitivity 140mm Nominal Power.

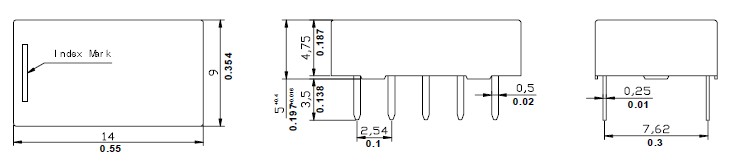

Diagrams
