Product Summary

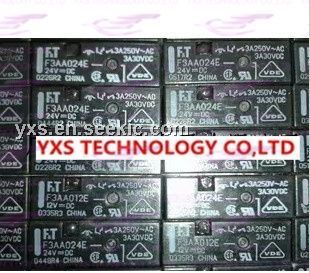

The F3AA024E is a Low Signal Relay for PCBs.
Parametrics
F3AA024E absolute maximum ratings: (1)coil power: 200mW; (2)coil voltage: 24V; (3)contact rating: 5A; (4)Max. Coil Voltage: 57.6 VDC; (5)Coil Resistance ( ±10%): 2,880 Ω; (6)Must Operate Voltage: 18.0 VDC; (7)Must Release Voltage: 2.2 VDC.
Features
F3AA024E features: (1)HIGH density mounting: Slim type with 7mm width and 142mm mounting space; (2)High isolation: insulation Distance: Minimum 6mm between coil and contact (conforms to IEC 60065) Dielectric Strength: 4KV, Surge Strength: 10KV; (3)High coil sensitivity: nominal coil power consumption of 200mW; (4)Cadmium free contact for eco-program; (5)Safety standards: ul, csa, vde, semko, cqc; (6)Plastic sealed relay; (7)RoHS compliant since date code: 0435R1, 0432R2, 0429R3, 0434R4, 0437L2.
Diagrams
