Product Summary

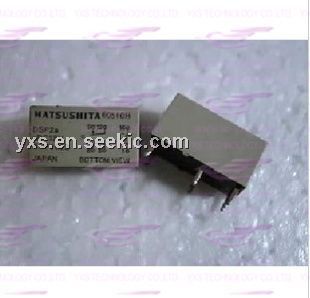

The DSP2A-5V is designed as a miniature power relay. And it can be used in (1)Office and industrial electronic devices; (2)Terminal devices of information processing equipment, such as printer, data recorder; (3)Office equipment (copier, facsimile); (4)Measuring instruments; (5)NC machines, temperature controllers and programmable logic controllers.
Parametrics
DSP2A-5V absolute maximum ratings: (1)Arrangement: 1 Form A; (2)Initial contact resistance: 30 mΩ; (3)Contact material: gold flash over silver alloy; (4)Temperature rise: Max. 55°C (1a, 2a types); (5)Operate time (at nominal voltage): Max. 10 ms (Approx. 5 ms); (6)Release time: Max. 5 ms (Approx. 4 ms).
Features
DSP2A-5V features: (1)Power types added to DS relay series; (2)High switching capacity: 1a: 8 A 250 V AC / 1a1b, 2a: 5 A 250 V AC; (3)High sensitivity: 190 mW pick-up power; (4)High contact welding resistance; (5)Latching types available; (6)High breakdown voltage 3,000 Vrms between contacts and coil 1,000 Vrms between open contacts Meeting FCC Part 68; (7)Sealed types are standard.

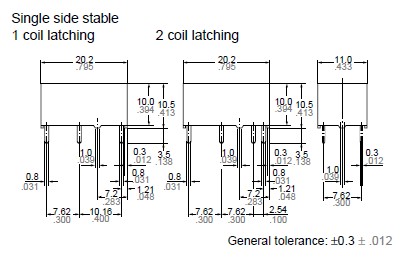

Diagrams
