Product Summary

The AGN200A4H is designed as an ultra-small package SLIM polarized relay.

Parametrics

AGN200A4H absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance: 100 mΩ; (3)Contact material: stationary: AgPd+Au clad and movable: AgPd; (4)Initial insulation resistance: Min. 1,000MΩ (at 500V DC); (5)Operate time: Max. 4 ms (Approx. 2 ms); (6)Release time (without diode): Max. 4 ms (Approx. 1 ms).

Features

AGN200A4H features: (1)Compact slim body saves space; (2)Outstanding surge resistance; (3)The use of twin crossbar contacts ensures high contact reliability; (4)Increased packaging density; (5)Nominal operating power: 140 mW; (6)Outstanding vibration and shock resistance.

Diagrams

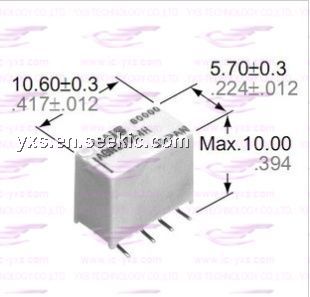

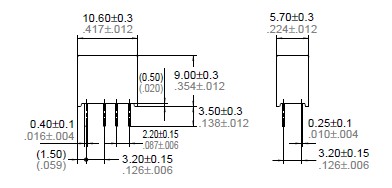

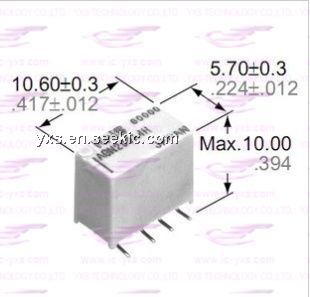

AGN200A4H dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AGN200A4H
AGN200A4H
Panasonic Electric Works
Low Signal Relays - PCB 1A 4.5VDC DPDT NON-LATCH SMD
Data Sheet
0-1: $2.43
1-25: $2.16
25-50: $2.05
50-100: $1.84
