Product Summary

The 61F-GPN-50 is a floatless level switch.

Parametrics

61F-GPN-50 absolute maximum ratings: (1)Supply voltage: 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz; (2)Operating voltage: 85% to 110% of rated voltage; (3)Interelectrode voltage: 8 VAC; (4)Interelectrode current: Approx. 1 mA AC max.; (5)Power consumption Approx. 3.5 VA max.; (6)Ambient temperature Operating:–10 to 55°C (–10 to 70°C for high-temperature controller); (7)Ambient humidity Operating:45% to 85% RH; (8)Insulation resistance: 100 MΩ min. (at 500 VDC).

Features

61F-GPN-50 features: (1)Compact: 49.4 x 38 x 84 mm (HxWxD).; (2)Easy identification of operating status with LED operation indicator; (3)Independent DPDT contacts on 11-Pin Models; (4)CE marking (N and N8 models) and UL/CSA compliance (N8 models).

Diagrams

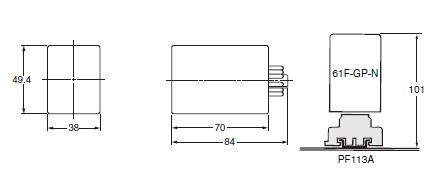

61F-GPN-50 dimension figure
