Product Summary
The QM1000HA-2HB is designed as one kind of high power switching use insulated type device. It can be used in AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders.
Parametrics
QM1000HA-2HB absolute maximum ratings: (1)Collector-emitter voltage: 1000V; (2)Collector-emitter voltage: 1000V; (3)Collector-base voltage: 1000V; (4)Emitter-base voltage: 7V; (5)Junction temperature: -40 to +150°C; (6)Storage temperature: -40 to +125°C; (7)Base current: 50A.
Features
QM1000HA-2HB features: (1)Insulated type; (2)UL recognized: yellow card No. E80276 (N), File No. E80271; (3)IC collector current: 1000A; (4)VCEX collector-emitter voltage: 1000V; (5)hFE DC current gain: 750.

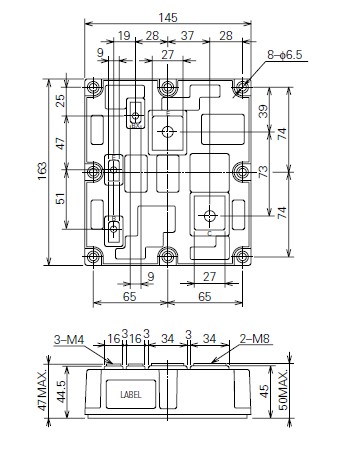

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM1000HA-2HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
