Product Summary
The N121I1 -L01 is a 12.1” TFT Liquid Crystal Display module with single CCFL Backlight unit and 20 pins LVDS interface. The N121I1 -L01 supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The inverter module for Backlight is not built in.
Parametrics
N121I1-L01 absolute maximum ratings: (1)Storage Temperature: +60 ℃ ; (2)Operating Ambient Temperature: +50 ℃; (3)Shock (Non-Operating): 200 G ; (4)Vibration (Non-Operating): 1.5 G.
Features
N121I1-L01 features: (1)Thin and light weight ; (2)WXGA (1280 x 800 pixels) resolution; (3)3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock.

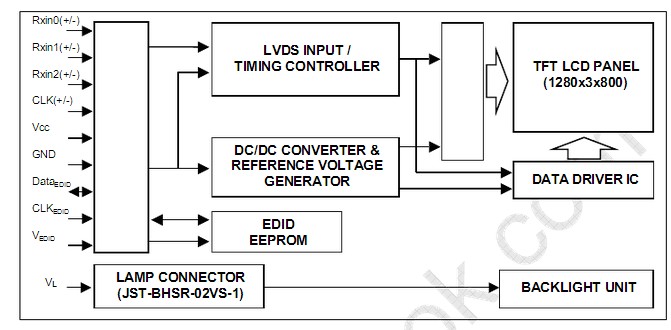

Diagrams
