The N116BGE-L42 is a 11.6” (11.6” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors.
Parametrics
N116BGE-L42 absolute maximum ratings: (1)Storage Temperature TST: -20 to +60℃; (2)Operating Ambient Temperature TOP: 0 to +50℃; (3)Power Supply Voltage VCCS: -0.3 to +4.0 V; (4)Logic Input Voltage VIN: -0.3 to VCCS+0.3 V; (5)Converter Input Voltage LED_VCCS: -0.3 to 25 V; (6)Converter Control Signal Voltage LED_PWM: -0.3 to 5 V; (7)Converter Control Signal Voltage LED_EN: -0.3 to 5 V.
Features
N116BGE-L42 features: (1)Screen Size: 11.6 diagonal; (2)Driver Element: a-si TFT active matrix; (3)Pixel Number: 1366 x R.G.B. x 768 pixel; (4)Pixel Pitch: 0.1875 (H) x 0.1875 (V) mm; (5)Pixel Arrangement: RGB vertical stripe; (6)Display Colors: 262,144 color; (7)Transmissive Mode: Normally white; (8)Surface Treatment: Hard coating (3H), Glare; (9)Luminance, White: 200(typ.) Cd/m2; (10)Power Consumption: Total 3.237 W (Max.) @ cell 1.089 W (Max.), BL 2.148 W(Max.).

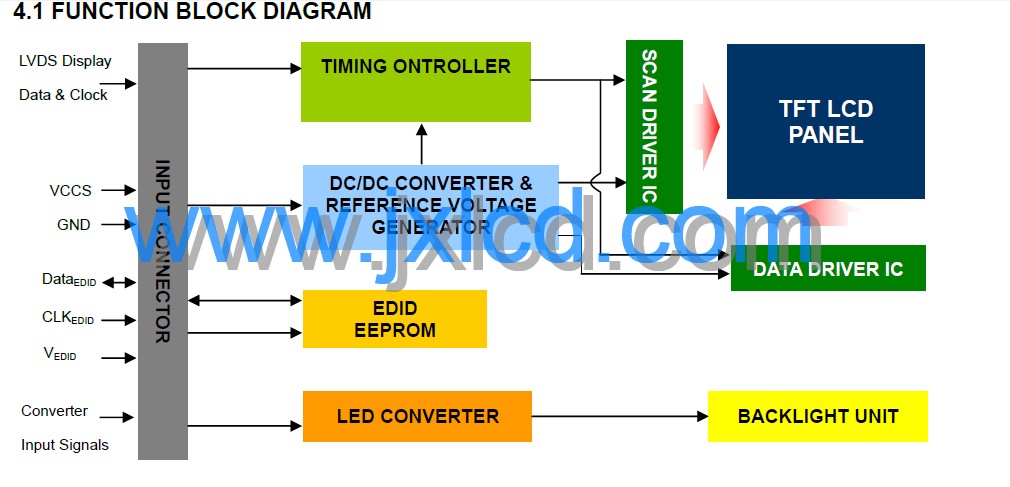

Diagrams
