Product Summary
The N116B6-L04 is a TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface. The N116B6-L04 supports 1366 x 768 HD mode and can display 262,144 colors.
Parametrics
N116B6-L04 absolute maximum ratings: (1)Power Supply Voltage: -0.3 to +4.0 V; (2)Logic Input Voltage: -0.3 to VCCS+0.3 V; (3)Converter Input Voltage LED: -0.3 to 25 V; (4)Converter Control Signal Voltage: -0.3 to 5.5 V ; (5)Converter Control Signal Voltage: -0.3 to 5.5 V.
Features
N116B6-L04 features: (1)Power Supply Voltage: 3.0 to 3.6 V; (2)Ripple Voltage: 50 mV; (3)Inrush Current: 1.5 A.

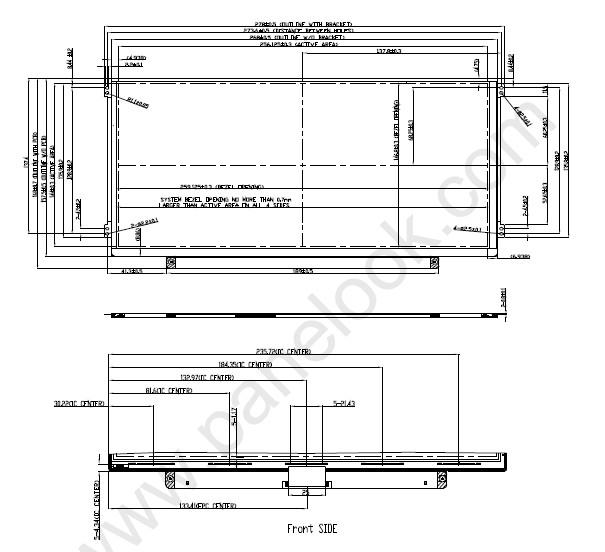

Diagrams
