Product Summary

The M140NWR1 R0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). The M140NWR1 R0 uses amorphous silicon TFT as a switching device. The M140NWR1 R0 is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This TFT LCD has a 14.0-inch diagonally measured active display area with resolution (1,366 horizontal by 768 vertical pixel array).

Parametrics

M140NWR1 R0 absolute maximum ratings: (1)Supply Voltage VDD: -0.5 to 4.0 V; (2)Supply V_LED Voltage V_LED: 6 to 21V; (3)Input Signal: 0.5 to 2.6 V; (4)Operating Temperature TOP: 0 to 50℃; (5)Operating Humidity HOP: 80 %RH; (6)Storage Temperature TST: -20 to 60℃; (7)Storage Humidity HST: 90 %RH.

Features

M140NWR1 R0 features: (1)14.0” TFT LCD Panel; (2)LED Light-bar Backlight System; (3)Supported (1,366x768 pixels) resolution; (4)Compatible with RoHS standard.

Diagrams

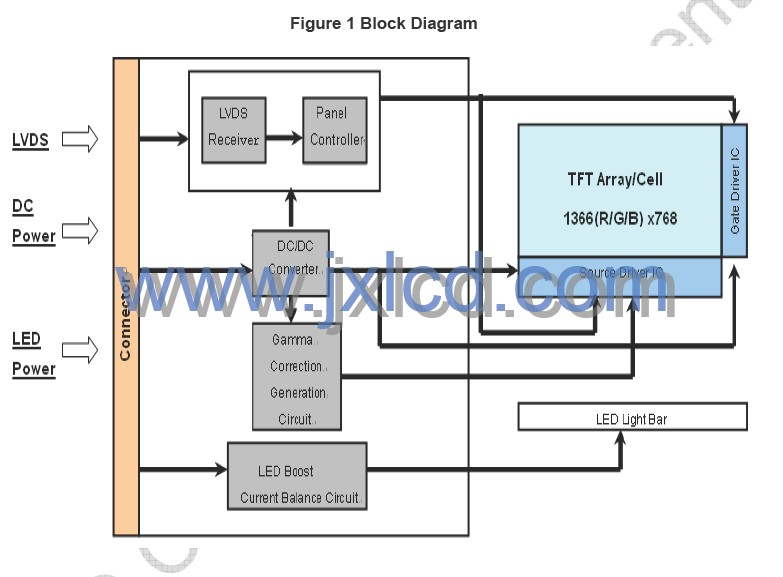

M140NWR1 R0 block diagram
