Product Summary
The LTN156AT15-C01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 15.6” contains 1366 x 768 pixels and can display up to 262,144 colors. The applications of the LTN156AT15-C01 include Notebook PC and If the usage of this product is not for PC application, but for others, please contact SEC.
Parametrics
LTN156AT15-C01 absolute maximum ratings: (1)Storage temperate: -20 to 60 ℃; (2)Operating temperate (Temperature of glass surface): 0 to 50 ℃; (3)Shock ( non-operating ): 240 G; (4)Vibration (non-operating): 2.41 G.
Features
LTN156AT15-C01 features: (1)High contrast ratio; (2)HD(1366 x 768 pixels ) resolution; (3)Low power consumption; (4)Fast Response; (5)LED Back Light with embedded LED Driver; (6)DE (Data enable) only mode; (7)3.3V LVDS Interface; (8)Onboard EEDID chip.

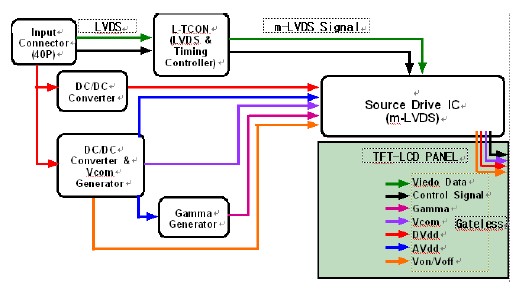

Diagrams
