Product Summary
The LTN116AT01-201 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 11.6 contains 1366 × 768 pixels and can display up to 262,144 colors. 6 O’clock direction is the Optimum viewing angle. The application of the LTN116AT01-201 includes Notebook PC.
Parametrics
LTN116AT01-201 absolute maximum ratings: (1)Storage temperate, TSTG: -20 to 60 ℃; (2)Operating temperate (Temperature of glass surface),TOPR: 0 to 50 ℃; (3)Shock ( non-operating ), Snop: 240 G; (4)Vibration (non-operating), Vnop: 2.41 G; (5)Power Supply Voltage, VDD: -0.3 to +0.3 V; (6)Logic Input Voltage, VDD: -0.3 to +0.3 V; (7)LED Current, IL: 20 mA; (8)LED Voltage, FL: 3.2 V.
Features
LTN116AT01-201 features:(1)High contrast ratio, high aperture structure; (2)1366 x 768 pixels resolution; (3)Fast Response Time; (4)Low power consumption; (5)LED BLU Structure; (6)DE (Data enable) only mode.; (7)3.3V LVDS Interface; (8)On board EDID chip; (9)RoHS Compliance.

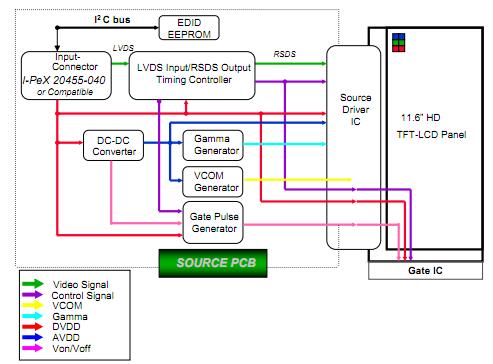

Diagrams
