Product Summary
The LQ133K1LD4BZ is a Color TFT-LCD Module for OA/Multimedia by 1280RGB*800. It is applicated for Desktop PC/Monitor.
Parametrics
LQ133K1LD4BZ absolute maximum ratings: (1)Brightness: 120 cd/m2; (2)Dot format (H x V): 1280 x RGB x 800 dot; (3)Contrast ratio: 300; (4)Dot pitch (H x V): 0.088 x 0.264 mm; (5)Power consumption panel & backlight: 5.3 W; (6)Ative area (H x V): 270.3 x 202.8 mm ; (7)Outline dimensions (W x H x D): 296.5 x 214.0 x 7.0 mm; (8)Input signal: 6-bit Digital RGB; (9)Weight: 570 g; (10)Operating temperature: 0 to + 50℃; (11)Storage temperature: -25 to + 60℃.
Features
LQ133K1LD4BZ features: (1)13.3" XGA format; (2)LVDS (Low voltage differential signaling) technology; (3)Thin & lightweight.

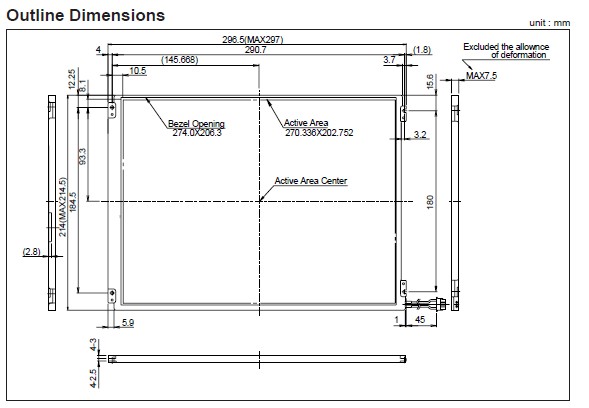

Diagrams
