Product Summary
The LP156WH2 -TLAA is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 15.6 inches diagonally measured active display area with HD resolution (1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue subpixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP156WH2 -TLAA has been designed to apply the interface method that enables low power, high speed, low EMI. The LP156WH2 -TLAA is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the subpixels, the LP156WH2 characteristics provide an excellent flat display for office automation products such as Notebook PC.
Parametrics
LP156WH2 -TLAA absolute maximum ratings: (1)Power Input Voltage: -0.3 to 4.0 V; (2)Operating Temperature: 0 to 50 ℃; (3)Storage Temperature: -20 to 60 ℃; (4)Operating Ambient Humidity: 10 to 90 %RH; (5)Storage Humidity: 10 to 90 %RH.
Features
LP156WH2 -TLAA features: (1)Active Screen Size: 15.6 inches diagonal; (2)Outline Dimension: 359.3(H, Typ.) × 209.5(V, Typ.) × 5.5(D, Max.) mm; (3)Pixel Pitch: 0.252mm X 0.252mm; (4)Pixel Format: 1366 horiz. by 768 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Power Consumption: Total 4.9 W(Typ.) Logic : 1.4 W (Typ.@ Mosaic), B/L : 3.5W (Typ. With LED Driver ); (7)Weight: 470g (Max.).

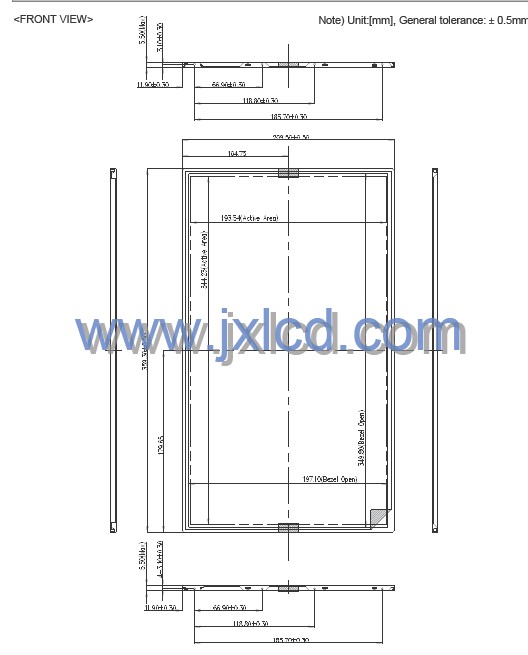

Diagrams
